Introduction

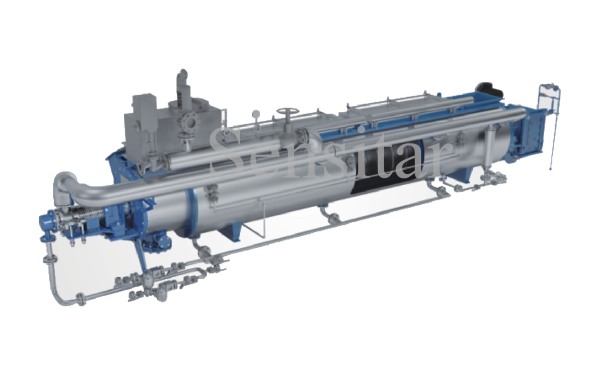

The fish cooker combines many years of experience in fish processing. The fish cooker consists of a stator housing with steam-heated jacket and a screw rotor with flights that are mounted on the whole length of the rotor. Rotor and flights are indirectly heated by steam. The stator steam jacket is divided into sections, enabling uniform distribution of the stream by means of a steam manifold. The condensate from the jacket is discharged through a condensate manifold. The housing is equipped with hinged hatched with counterweights for efficienct inspection and cleaning. The rotor is equipped with stuffing boxes in both ends. The rotor is supported at both ends only by means of roller bearings.
Steam enters and condensate is evacuated through the rotary joint mounted on the end shaft.
Application
The indirect cookers are applied in processes where high yield from raw material of variable quality and composition is required. Fish meal and turkey offal are examples of such processes.
Technical Specifications
Cooker
Type
Capacity
(t/h)
Weight
(metric ton)
Dimension(mm)
Length
Height
Width
XFC0605
2.6-3.5
3350
1050
1200
4
XFC0806
6.4-8.0
8250
1850
1850
12
XFC0808
8.8-11.0
10200
1850
1850
14
XFC1108
12.8-16.0
10900
2350
2200
20
XFC1110
16.0-20.0
12800
2350
2200
23
XFC1112
20.0-25.0
14850
2350
2200
27
XFC1310
20.0-25.0
13050
2450
2200
32
XFC1312
24.0-30.0
15050
2450
2200
36
XFC1314
28.0-35.0
17050
2450
2200
40
XFC1612
30.4-38.0
15150
3450
2400
40
XFC1614
35.2-44.0
17150
3450
2400
47
XFC1616
40.0-50.0
19150
3450
2400
55
