Introduction

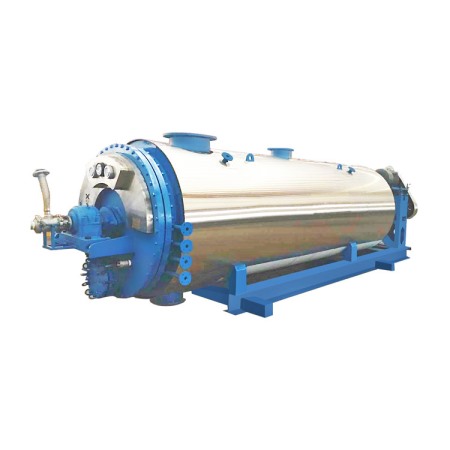

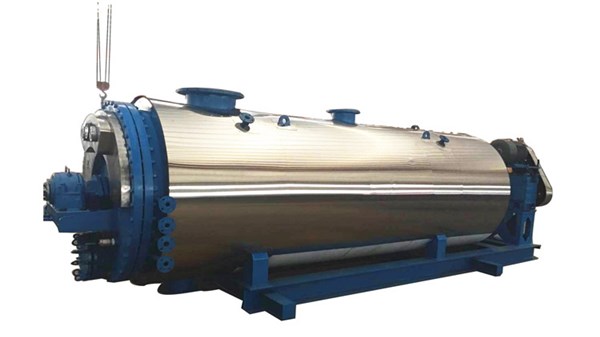

The Sensitar batch cooker is designed for sterilization, dehydration and drying of animal by-products. The batch cooker is one of the most important parts of dry rendering plant and is manufactured in 5 standard sizes to suit various plant capacities.
Application
The Sensitar batch cooker can be used for processing of the following animal by-products:
1.Mixed meat offal and bones
2.Raw blood
3.Wet feathers
4.Mixed poultry offal
5.Pig, cow, sheep, ect

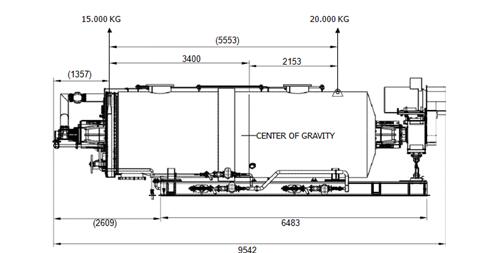

Equipment structure
Technical Specification
Techncial specification |
Unit |
Type |
||||
BC5000 | BC6500 | BC8500 | BC10000 | Bc160000 | ||
Dimension A | mm | 5450 | 7100 | 7425 | 8400 | 9000 |
B | mm | 2070 | 2070 | 2305 | 2035 | 2500 |
C | mm | 1600 | 1600 | 1775 | 1775 | 2100 |
Design pressure jacket and rotor | Bar | 10 | 10 | 10 | 10 | 10 |
Design pressure cooker | Bar | 5 | 5 | 5 | 5 | 5 |
Heating surface | ㎡ | 27 | 35 | 41 | 49 | 63 |
Power | KW | 37 | 45 | 55 | 75 | 110 |
Shipping weight | Kg | 12000 | 13500 | 19000 | 22000 | 36000 |
Cooker Type |
Capacity (Kg/batch) |
|||
Mixed meat offal, bones | Raw blood | Wet feathers | Mixed poultry offal | |
XBC5000 | 3000 | 2000 | 2700 | 3000 |
XBC6500 | 4000 | 2500 | 3500 | 4000 |
XBC8500 | 5000 | 3400 | 4600 | 5000 |
XBC10000 | 6000 | 4000 | 5400 | 6000 |
XBC16000 | 12000 | 7000 | 9000 | 12000 |
