Introduction

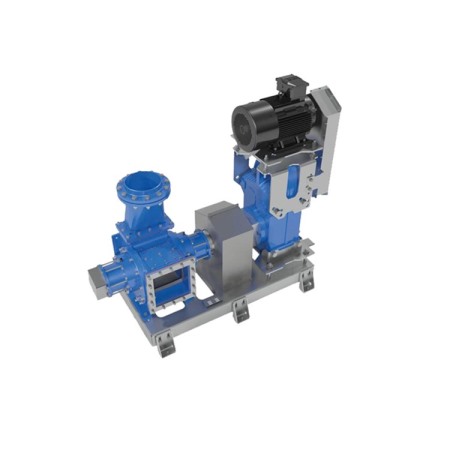

Sensitar standard pumps can be delivered with pump housing in cast iron or stainless steel in all sizes to suit individual requirements.
The Sensitar pumps are manufactured with replaceable wear parts in special steel. The Sensitar pump has only four moving parts and it can be equipped with bearing with mechanical sealing or a standard bearing arrangement with stuffing box.


Advantage


Low energy consuption
Low odor emission

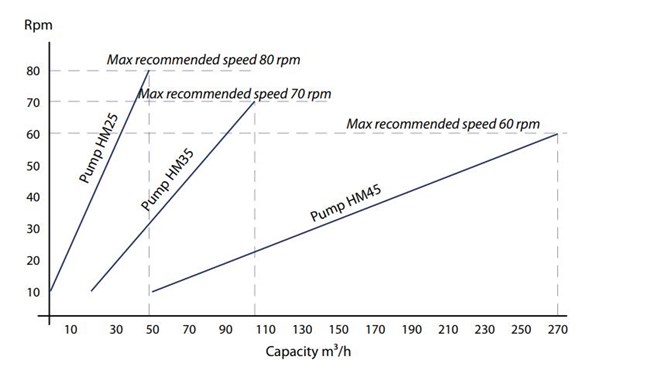

Theoretical Performance


Techncial Specidication
| Technical Specification | Type | HM25 | HM35 | HM45 |
| Max. theoretical capacity | m³ | 48 | 105 | 270 |
| Max. recommendable speed | rpm | 80 | 70 | 60 |
| Theoretical displacement | L/rev | 10 | 25 | 75 |
| Max. recommendable torque on shaft | Nm | 4000 | 7000 | 15000 |
| Weight | Kg | 390 | 550 | 915 |
| Solid particle handing | mm | 65 | 85 | 135 |
