Introduction

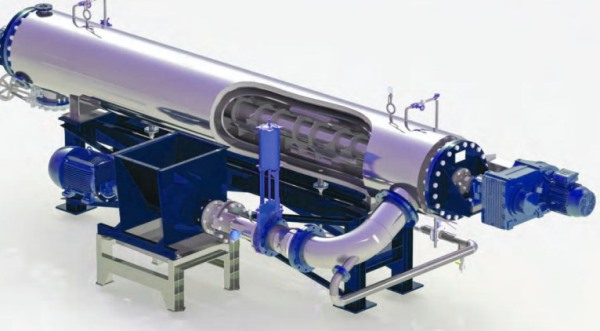

The Sensitar Continuous Hydrolyzor converts poultry feathers or hog hair into a highly nutritional animal feed. Every part of the Continuous Hydrolyzor that toucher product is constructed of stainless steel. Proven screw feeder technology provides a position seal for the hydrolyzing vessel, and a steam-heated agitator shaft ensures optimum heat transer and steam efficiency. Steam-sacing discharge assembly maintains internal pressure and proper operation level in the shell.
Advantage
Available in carbon or stainless steel or a combination of both
Low maintenance, only need to maintain a pressurized packing gland
Special main shaft designed to ensure efficient
Continuous automated operation
Low steam consumption

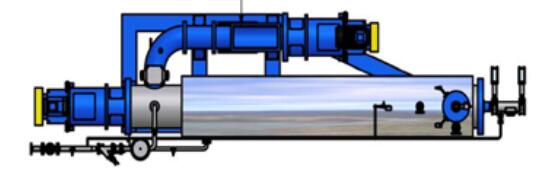

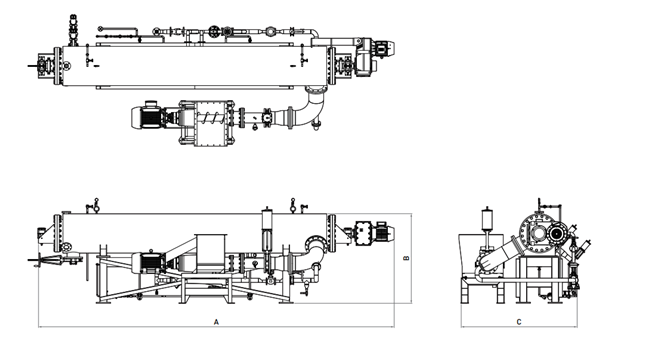

Equipment Structure
Technical Specification
Technical Specification |
Type |
|||
Unit | CFH-50 | CFH-75 | CFH-120 | |
Capacity | t/h | 5.0 | 7.5 | 12.0 |
A Inlet | mm | 925×405 |
925×405 |
925×445 |
A | mm | 9250 | 10250 | 10950 |
B | mm | 3100 | 3200 | 3450 |
C | mm | 2600 | 2650 | 3000 |
Weight | mt | 15 | 16 | 18 |
Power, feeder | KW | 37 | 45 | 55 |
Power, hydroliser | KW | 18.5 | 22 | 30 |
